Payment Initiation Service Flow

This page provides instructions to use the NextGenPSD2XS2AFramework API to provide the Payment Initiation Service (PIS).

Before you begin:

Deploy the NextGenPSD2XS2AFramework API.

Generating application access token

Once you register the application, generate an application access token.

  1. Run the following cURL command in a command prompt to generate the access token. Update the placeholders with relevant values.

    Use the sample certificates for testing purposes. Click here to see how it is done...

    1. Download the cert.pem and upload it to the client trust stores as follows:

    2. The client trust stores for the Identity Server and API Manager are located in the following locations:

    3. <APIM_HOME>/repository/resources/security/client-truststore.jks

    4. <IS_HOME>/repository/resources/security/client-truststore.jks

    5. Use the following commands to add the certificate to the client trust store:

      keytool -import -alias cert -file <PATH_TO_CERT.PEM> -keystore client-truststore.jks -storepass wso2carbon

    6. Open the <APIM_HOME>/repository/conf/deployment.toml file and update the following configurations. Add the relevant signature algorithm supported by the certificate to the following configuration. Sample certificate supports SHA1withRSA signature algorithm:
      supported_signature_algorithms = ["SHA256withRSA", "SHA512withRSA", "SHA1withRSA"]
      Configure the issuer of the certificate as below if the certificate needs to be skipped form revocation validation.
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "EMAILADDRESS=<EMAIL_ADDRESS>, CN=<COMMON_NAME>, OU=<ORGANIZATIONAL_UNIT>, O=<ORGANIZATION>, L=<LOCALITY>, ST=<STATE/PROVINCE>, C=<COUNTRY>"
      Configure as below if the test certificates are used:
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "[email protected], CN=OB, OU=OB, O=WSO2, L=COL, ST=WP, C=LK"

    7. Restart the servers.

    8. Download the following certificates and keys, and use them for testing purposes. Use the transport private key and transport public certificate for Transport layer security testing purposes. Use the signing certificate and signing private keys for signing purposes.

   curl -X POST \
   https://<IS_HOST>:9446/oauth2/token \
   --cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
   -d 'grant_type=client_credentials&scope=payments&client_id=<CLIENT_ID>'
   ```

2. Upon successful token generation, you can obtain a token as follows:
``` json
{
   "access_token":"eyJ4NXQiOiJOVGRtWmpNNFpEazNOalkwWXpjNU1tWm1PRGd3TVRFM01XWXdOREU1TVdSbFpEZzROemM0WkEiLCJraWQiOiJNell4TW1Ga09HWXdNV0kwWldObU5EY3hOR1l3WW1NNFpUQTNNV0kyTkRBelpHUXpOR00wWkdSbE5qSmtPREZrWkRSaU9URmtNV0ZoTXpVMlpHVmxOZ19SUzI1NiIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiJhZG1pbkB3c28yLmNvbUBjYXJib24uc3VwZXIiLCJhdXQiOiJBUFBMSUNBVElPTiIsImF1ZCI6IlBTREdCLU9CLVVua25vd24wMDE1ODAwMDAxSFFRclpBQVgiLCJuYmYiOjE2NDY4OTEyNzIsImF6cCI6IlBTREdCLU9CLVVua25vd24wMDE1ODAwMDAxSFFRclpBQVgiLCJzY29wZSI6InBheW1lbnRzIiwiaXNzIjoiaHR0cHM6Ly9sb2NhbGhvc3Q6OTQ0Ni9vYXV0aDIvdG9rZW4iLCJjbmYiOnsieDV0I1MyNTYiOiJ5YmVxYUltNTAwSU1QeTE5VmtQZkhSVEpOdDlxdl9RdDVqbUhkdC1iSm1jIn0sImV4cCI6MTY0Njg5NDg3MiwiaWF0IjoxNjQ2ODkxMjcyLCJqdGkiOiI0Zjg0NmQwMS00ZjAxLTQ4YTAtYjliMi1iOTdjNzRmZjUxYTgifQ.CklCtjHYMzc_7u8EacYPQ-O7mhrFs-oR3pIk1fVz93dYwB5Bq959Z--TCT1BIxzWWEhnuD6jiVmdzJQ8LrZu7LczF-lyaP21UEAM5a23ZXmeG_5WZHXONWmKbo4mvcswqwJXbS9dOO1JU8Rx59JMP2zGBjbK3xf0zalWNC4IqQO6xhl8EzcoBahkqBwcygmhf3QyCKXozZpnCqG7HcYwYVFU7F0SKrGpDl2TZ9axWzBjvVOAK9d0G8EQhGjpNy0FY1lS4ZZGbPrUGTuoWBG1WEfqI_CTU7gXi_gGClKjWGXbqEy8FIgh34GCOt5xwx7XJ-nkwzwQzjXtgO1ZNOmdlA",
   "scope":"payments",
   "token_type":"Bearer",
   "expires_in":3600
}

This is where the PISP generates a request to get the consent of the PSU to initiate a payment on behalf of the PSU. There are 3 types of payment initiations:

  • Instant payment initiation
  • Periodic payment initiation
  • Bulk payment initiation

Listed below are the Payment Product types:

  • sepa-credit-transfers
  • instant-sepa-credit-transfers
  • target-2-payments
  • cross-border-credit-transfers

The following steps explain how to try out the Payment Initiation Service.

  1. Create a consent using the following request:

    Mandatory headers

    The following headers are mandatory for this request:

    • X-Request-ID: The unique ID of the request as determined by the initiating party.
    • PSU-IP-Address: The IP Address on which the PSU is connected to the TPP. This header is mandatory for all accounts and payments consent initiation requests, and optional for funds confirmations consent initiation requests.
    • Signature: Mandatory by default. If the signature validation is not required, remove SignatureValidationExecutor from the <APIM_HOME>/repository/conf/deployment.toml.
    • Digest: Mandatory only if the Signature header is present.

    For Instant Payment Initiation

    curl -X POST 'https://<APIM_HOST>:8243/xs2a/v1/payments/sepa-credit-transfers' \
-H 'X-Request-ID: 8a725903-f00d-48f9-b23c-457726581fd6' \
-H 'Date: Fri, 11 Mar 2022 15:35:39 IST' \
-H 'PSU-IP-Address: 192.168.1.5' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=AMuUQALJmENhCTR9yTo6R6WsRN80O2bWjm0Jpsfhq/g6' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=MKjgyMLQ5AwcsY5YXG7gWPVGKQqqCPSg3078uDYwZzvVsSf9+mdGJWaTG9VrXEYBB6CkBJ9MmyQsfBW7MxR+0qOY+13TwpnMDh8dh0wuhq2iWVAhfPRKY8VqltWjIVTvq0bVuXP8TxwNqgGblszCO9ULNPoTsUDvhINYZi1gM5En57TiATXVGNeMuXSwoy2TK6IoFchfyrf5vQuYQkHsbFoYGcg7vHepq8Orcp2mDhwY+fpK9ylORf6bSt8tjcshzd7MsjS+RKQLo7y+c/A3hCrc6SuauXHh0RZcWWug/VJXUC8p784lM/w8wYXULdeoCdcB9XusBxISV/+Bx3xAmg==' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Content-Type: application/json; charset=UTF-8' \
-H 'Authorization: <APPLICATION_ACCESS_TOKEN>' \
--cert <PUBLIC_KEY_FILE_PATH> --key <PRIVATE_KEY_FILE_PATH> \
-d '{
   "instructedAmount": {
       "currency": "EUR",
       "amount": "123.50"
   },
   "debtorAccount": {
       "iban": "DE12345678901234567890",
       "currency": "EUR"
   },
   "creditorName": "Merchant123",
   "creditorAccount": {
       "iban": "DE98765432109876543210"
   },
   "remittanceInformationUnstructured": "Ref Number Merchant"
}'
    {
   "transactionStatus":"RCVD",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173/authorisations/fe545b42-c570-412e-b978-7623db44bc2d"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      },
      "self":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173"
      },
      "status":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173/status"
      }
   },
   "paymentId":"ad3459b7-7c07-45ea-ab2a-431a77ff3173"
}

    For Periodic Payments Initiation

    curl -X POST 'https://<APIM_HOST>:8243/xs2a/v1/periodic-payments/sepa-credit-transfers' \
-H 'X-Request-ID: 2c3e7dbc-9bff-4b23-95a2-93364ace2977' \
-H 'Date: Fri, 11 Mar 2022 15:35:39 IST' \
-H 'PSU-IP-Address: 192.168.1.5' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=FxRZe+LLWy1JD4QQr9ts51nwpoRFVwzC6GKWB5BLyuM=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=nkSODn96gzbeIy+MJCQf/TYj9/ERFfw9wxWT5zWiscLJs+8N4sQ15/y1RV857MQmLglaqk8UMKMWqOtibmRP5e5q145wCxpbiDHCfaF03dFy6Mz7YsPvhMIe5DsRYSfjc7gL9lqQDqeXBXY5zhRKMpiTrHgPlUfWRa1M77NvqfPDzOmgHHqUap9NpKMHkUZ/MpyGkDXiOvug8DLfBp9qrXeXbQDm/5hbZGLZSMYct1BYe0vTs9/l9H9NpyThblDE9TG8UgJVJETscoW9d/h4DE2STAoFWDNIKdrTb2W/joVb3xovJjok2yLt9eTMCoP8Gq3UuXa8351bI26WZXk9EA==' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Content-Type: application/json; charset=UTF-8' \
-H 'Authorization: <APPLICATION_ACCESS_TOKEN>' \
--cert <PUBLIC_KEY_FILE_PATH> --key <PRIVATE_KEY_FILE_PATH> \
-d '{
   "instructedAmount": {
       "currency": "EUR",
       "amount": "123.50"
   },
   "debtorAccount": {
       "iban": "DE12345678901234567890",
       "currency": "EUR"
   },
   "creditorName": "Merchant123",
   "creditorAccount": {
       "iban": "DE98765432109876543210"
   },
   "remittanceInformationUnstructured": "Ref Number Abonnement",
   "startDate": "2022-03-16",
   "executionRule": "following",
   "frequency": "Monthly",
   "dayOfExecution": "01"
}'
    {
   "transactionStatus":"RCVD",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v1/periodic-payments/sepa-credit-transfers/d6cf82ce-0884-4c64-8a97-2bfbb3574d9e/authorisations/406fee1b-0619-478c-a012-fc8cd3b1a80b"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      },
      "self":{
         "href":"/v1/periodic-payments/sepa-credit-transfers/d6cf82ce-0884-4c64-8a97-2bfbb3574d9e"
      },
      "status":{
         "href":"/v1/periodic-payments/sepa-credit-transfers/d6cf82ce-0884-4c64-8a97-2bfbb3574d9e/status"
      }
   },
   "paymentId":"d6cf82ce-0884-4c64-8a97-2bfbb3574d9e"
}

    For Bulk Payments Initiation

    curl -X POST 'https://<APIM_HOST>:8243/xs2a/v1/bulk-payments/sepa-credit-transfers' \
-H 'X-Request-ID: 2c3e7dbc-9bff-4b23-95a2-93364ace2978' \
-H 'Date: Fri, 11 Mar 2022 15:55:39 IST' \
-H 'PSU-IP-Address: 192.168.1.5' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=APyAWNOZF8RtQYqfjhvEax/XvLNzp+9yWkVqiG8h8IPT' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=vygh2dDrkoku18LcDgIBA4iKU9V/P/LZCb0OZC3d+yoIygc/ceehj3K13MbTR4m3F+QOC4ksRCuBRxwG3vtp4WYBf3rFckTBxOAlH0yhfbZqg0f5smj/H3CzhuxsxtIIo2ny+NOYbs3ycWfNseB6lL3Pc2x/ZZkEqBT3kTq4zrrRedFkIRZmow8nhCJ00YvWqqgV6MusFl1wI3JRJ4R1nfBEKs2aQTrao3XM29mwulXnOZMg78KSi55W+qbKjqBY9N33ksEGlt2YNAMI8Ap+hh4kyVY7YYwmkSKlXtqz4dZU4f3UMsHz4pk0iEnXM/KCR0PGa8pubYV3lt4wDE/ZXA==' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Content-Type: application/json; charset=UTF-8' \
-H 'Authorization: <APPLICATION_ACCESS_TOKEN>' \
--cert <PUBLIC_KEY_FILE_PATH> --key <PRIVATE_KEY_FILE_PATH> \
-d '{
   "batchBookingPreferred": true,
   "debtorAccount": {
       "iban": "DE12345678901234567890",
       "currency": "EUR"
   },
   "requestedExecutionDate": "2022-03-16",
   "payments": [
       {
           "instructedAmount": {
               "currency": "EUR",
               "amount": "123.50"
           },
           "creditorName": "Merchant123",
           "creditorAccount": {
               "iban": "DE98765432109876543210"
           },
           "remittanceInformationUnstructured": "Ref Number Merchant"
       },
       {
           "instructedAmount": {
               "currency": "EUR",
               "amount": "123.50"
           },
           "creditorName": "Merchant",
           "creditorAccount": {
               "iban": "DE23100120020123456789"
           },
           "remittanceInformationUnstructured": "Ref Number Merchant"
       }
   ]
}'
    {
   "transactionStatus":"RCVD",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v1/bulk-payments/sepa-credit-transfers/9e6229ac-a888-44ac-80cc-d384d8e20e73/authorisations/eb75d62e-5722-4233-aa66-860aaa818366"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      },
      "self":{
         "href":"/v1/bulk-payments/sepa-credit-transfers/9e6229ac-a888-44ac-80cc-d384d8e20e73"
      },
      "status":{
         "href":"/v1/bulk-payments/sepa-credit-transfers/9e6229ac-a888-44ac-80cc-d384d8e20e73/status"
      }
   },
   "paymentId":"9e6229ac-a888-44ac-80cc-d384d8e20e73"
}

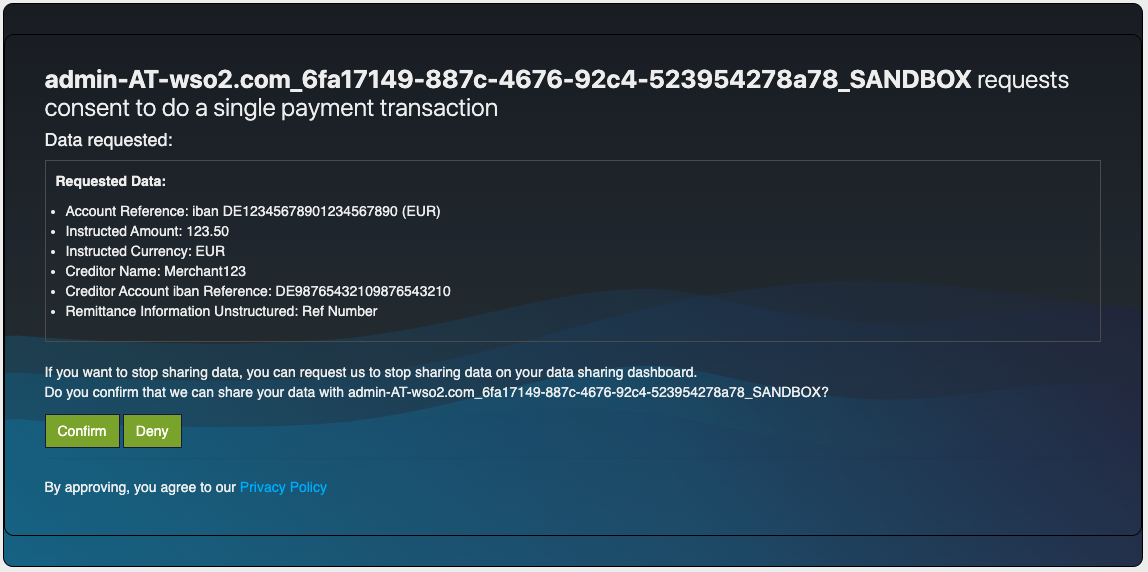

The PISP application redirects the PSU to authenticate and approve/deny the provided consent. This can be achieved in 2 ways:

  1. Implicit flow
  2. Explicit flow

The TPP decides the approach using TPP-Explicit-Authorisation-Preferred, which is an optional boolean header. This header is sent during the consent initiation request. If TPP-Explicit-Authorisation-Preferred is set to false or the header is not present, the Implicit approach is followed.

Implicit authorisation flow

The Implicit authorisation flow is as follows:

  1. The ASPSP creates an authorisation sub-resource implicitly after the payment consent is received.
  2. The ASPSP replies with the well-known configuration of the Identity Server in the _links section of the response.
  3. The TPP generates the authorisation URL using the well-known URL.
  4. The PSU goes through the authorisation flow with that authorisation URL.

Explicit authorisation flow

The Explicit authorisation flow is as follows:

  1. Once the consent is granted, the ASPSP replies with one of the startAuthorisation links in the _links section of the response.

    curl -X POST 'https://<APIM_HOST>:8243/xs2a/v1/payments/sepa-credit-transfers' \
-H 'X-Request-ID: 8a725903-f00d-48f9-b23c-457726581fd6' \
-H 'Date: Fri, 11 Mar 2022 15:35:39 IST' \
-H 'PSU-IP-Address: 192.168.1.5' \
-H 'PSU-ID: [email protected]' \
-H 'TPP-Explicit-Authorisation-Preferred: true' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=AMuUQALJmENhCTR9yTo6R6WsRN80O2bWjm0Jpsfhq/g6' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=MKjgyMLQ5AwcsY5YXG7gWPVGKQqqCPSg3078uDYwZzvVsSf9+mdGJWaTG9VrXEYBB6CkBJ9MmyQsfBW7MxR+0qOY+13TwpnMDh8dh0wuhq2iWVAhfPRKY8VqltWjIVTvq0bVuXP8TxwNqgGblszCO9ULNPoTsUDvhINYZi1gM5En57TiATXVGNeMuXSwoy2TK6IoFchfyrf5vQuYQkHsbFoYGcg7vHepq8Orcp2mDhwY+fpK9ylORf6bSt8tjcshzd7MsjS+RKQLo7y+c/A3hCrc6SuauXHh0RZcWWug/VJXUC8p784lM/w8wYXULdeoCdcB9XusBxISV/+Bx3xAmg==' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Content-Type: application/json; charset=UTF-8' \
-H 'Authorization: <APPLICATION_ACCESS_TOKEN>' \
--cert <PUBLIC_KEY_FILE_PATH> --key <PRIVATE_KEY_FILE_PATH> \
-d '{
   "instructedAmount": {
       "currency": "EUR",
       "amount": "123.50"
   },
   "debtorAccount": {
       "iban": "DE12345678901234567890",
       "currency": "EUR"
   },
   "creditorName": "Merchant123",
   "creditorAccount": {
       "iban": "DE98765432109876543210"
   },
   "remittanceInformationUnstructured": "Ref Number Merchant"
}'
    {
   "transactionStatus":"RCVD",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173/authorisations/fe545b42-c570-412e-b978-7623db44bc2d"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      },
      "self":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173"
      },
      "status":{
         "href":"/v1/payments/sepa-credit-transfers/ad3459b7-7c07-45ea-ab2a-431a77ff3173/status"
      }
   },
   "paymentId":"ad3459b7-7c07-45ea-ab2a-431a77ff3173"
}

  2. The TPP uses the startAuthorisation link to create an authorisation sub-resource explicitly.

    • Replace the <PAYMENT_SERVICE> placeholder with the relevant payment product (payments, bulk-payments, periodic-payments). This request contains an empty JSON payload.

      curl -L -X POST 'https://<APIM_HOST>:8243/xs2a/v1/<PAYMENT_SERVICE>/sepa-credit-transfers/<CONSENT_ID>/authorisations' \
-H 'X-Request-ID: 10b3a7a1-690c-4317-8959-b7edcf9338db' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'Content-Type: application/json' \
-d '{}'
      {
   "authorisationId":"72644123-5880-43ae-9039-bf2d26fe75a1",
   "scaStatus":"received",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v1/payments/sepa-credit-transfers/ab676e45-44ae-4baf-bc76-22bc1a076c8b/authorisations/72644123-5880-43ae-9039-bf2d26fe75a1"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      }
   }
}

  3. The ASPSP replies with the well-known configuration of the Identity Server in the _links section of the response.

  4. The TPP generates the authorisation URL using the well-known URL.

  5. PSU goes through the authorisation flow with that authorisation URL.

    Multiple SCA of more than one PSU (Multi-authorization)

    • For some accounts, more than one PSU has to give their consent before accessing this account. In this case, Strong Customer Authentication (SCA) has to be executed by more than one PSU.
    • In a multi-authorization scenario, steps 2 to 5 must be repeated n number of times for n number of PSUs. The consent becomes valid only after all the PSUs approve it.
    • If only one PSU has authorized the consent, the consent status will change to partiallyAuthorised. If one of the users does not authorize the consent, the consent status will change to rejected.

Authorisation URL

Regardless of the authorisation flow, once the well-known configuration of the Identity Server is obtained, the TPP must generate an authorisation URL for the PSU to authorise the consent. This authorisation URL must be authorised by n number of PSUs in a multi-level authorisation context.

  1. The ASPSP sends the request to the PSU stating the accounts and information that the TPP wishes to access. The
    request is a URL in the format given below. Update the placeholders with relevant values and run this in a browser to prompt the invocation of the authorize API:

    https://<IS_HOST>:9446/oauth2/authorize/?scope=<YOUR_SCOPES>&response_type=code&redirect_uri=<REDIRECT_URI>&state=<DYNAMICALLY_SET_VALUE>&code_challenge_method=<YOUR_CODE_CHALLENGE_METHOD>&client_id=<ORGANIZATION_ID>&code_challenge=<YOUR_CODE_CHALLENGE>
    Click here to see the descriptions for the parameters in Authorisation URL
    Parameter Description
    scope This is the reference to the payment consent resource for access. It is in the form of pis:<consentId>.
    response_type The recommended response type is code.
    redirect_uri The TPP's URI that the OAuth2 server redirects the PSU's user agent after the authorisation.
    state TPPs set a dynamic value to prevent XSRF attacks.
    code_challenge_method Code verifier transformation method. NextGenPSD2XS2AFramework specification recommends S256.
    client_id As provided in the eIDAS certificate, the organization_Identifier must contain the following information in it:
    • PSD as 3 character legal person identity type reference
    • 2 character ISO 3166 country code representing the NCA country
    • hyphen-minus -
    • 2-8 character NCA identifier (A-Z uppercase only, no separator - hyphen-minus "-"
    • PSP identifier (authorisation number as specified by NCA)
    code_challenge This is used to avoid code injection attacks using the PKCE challenge in the cryptographic RFC 7636. For more information, see RFC 7636.

    Tip

    The NextGenPSD2 Reference Toolkit requires PKCE support for authorization. The state and code challenge method values indicate the PKCE usage. For more information, see Consent Authorization with PKCE.

  2. Upon successful authentication, the PISP is redirected to the consent authorise page. Use the login credentials of a user that has a subscriber role.

  3. The page displays the data requested by the TPP for that particular consent along with its accounts and permissions.

    consent_page

  4. Upon providing consent, an authorization code is generated on the web page of the redirect_uri. See the sample given below:

    https://www.wso2.com/?code=5b771c49-dfe3-33f6-abe1-18f0426b8734&state=768ff3be-964c-41d9-9022-848ba379e1bf

    The authorization code from the above URL is in the code parameter (code=5b771c49-dfe3-33f6-abe1-18f0426b8734).

Generating user access token

In this section, you will be generating an access token using the authorization code generated in the section above.

  1. Run the following cURL command in a command prompt to generate the access token. Update the placeholders with relevant values.

    Use the sample certificates for testing purposes. Click here to see how it is done...

    1. Download the cert.pem and upload it to the client trust stores as follows:

    2. The client trust stores for the Identity Server and API Manager are located in the following locations:

    3. <APIM_HOME>/repository/resources/security/client-truststore.jks

    4. <IS_HOME>/repository/resources/security/client-truststore.jks

    5. Use the following commands to add the certificate to the client trust store:

      keytool -import -alias cert -file <PATH_TO_CERT.PEM> -keystore client-truststore.jks -storepass wso2carbon

    6. Open the <APIM_HOME>/repository/conf/deployment.toml file and update the following configurations. Add the relevant signature algorithm supported by the certificate to the following configuration. Sample certificate supports SHA1withRSA signature algorithm:
      supported_signature_algorithms = ["SHA256withRSA", "SHA512withRSA", "SHA1withRSA"]
      Configure the issuer of the certificate as below if the certificate needs to be skipped form revocation validation.
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "EMAILADDRESS=<EMAIL_ADDRESS>, CN=<COMMON_NAME>, OU=<ORGANIZATIONAL_UNIT>, O=<ORGANIZATION>, L=<LOCALITY>, ST=<STATE/PROVINCE>, C=<COUNTRY>"
      Configure as below if the test certificates are used:
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "[email protected], CN=OB, OU=OB, O=WSO2, L=COL, ST=WP, C=LK"

    7. Restart the servers.

    8. Download the following certificates and keys, and use them for testing purposes. Use the transport private key and transport public certificate for Transport layer security testing purposes. Use the signing certificate and signing private keys for signing purposes.

    curl -X POST \
https://<IS_HOST>:9446/oauth2/token \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d 'code=<GENERATED_CODE>&grant_type=authorization_code&redirect_uri=<REDIRECT_URI>&code_verifier=<CODE_VERIFIER>&client_id=<CLIENT_ID>'

  2. Upon successful token generation, you can obtain a token as follows:

     {
    "access_token":"eyJ4NXQiOiJOVGRtWmpNNFpEazNOalkwWXpjNU1tWm1PRGd3TVRFM01XWXdOREU1TVdSbFpEZzROemM0WkEiLCJraWQiOiJNell4TW1Ga09HWXdNV0kwWldObU5EY3hOR1l3WW1NNFpUQTNNV0kyTkRBelpHUXpOR00wWkdSbE5qSmtPREZrWkRSaU9URmtNV0ZoTXpVMlpHVmxOZ19SUzI1NiIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiJhZG1pbkB3c28yLmNvbUBjYXJib24uc3VwZXIiLCJhdXQiOiJBUFBMSUNBVElPTl9VU0VSIiwiYXVkIjoiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWCIsIm5iZiI6MTY0ODU0MTA2MiwiYXpwIjoiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWCIsInNjb3BlIjoicGF5bWVudCBwaXM6YzBkM2RhOGMtZGY3Ny00MjRmLWFiMDEtMGRmNDczODQ3MTNiIiwiaXNzIjoiaHR0cHM6Ly9sb2NhbGhvc3Q6OTQ0Ni9vYXV0aDIvdG9rZW4iLCJjbmYiOnsieDV0I1MyNTYiOiJ5YmVxYUltNTAwSU1QeTE5VmtQZkhSVEpOdDlxdl9RdDVqbUhkdC1iSm1jIn0sImV4cCI6MTY0ODU0NDY2MiwiaWF0IjoxNjQ4NTQxMDYyLCJqdGkiOiIzZDdiOGExOC03MTFjLTQ5Y2ItOWExNi01YmY4MzIwOTRmYzQiLCJjb25zZW50X2lkIjoiYzBkM2RhOGMtZGY3Ny00MjRmLWFiMDEtMGRmNDczODQ3MTNiIn0.vh_YgnDWgLD1cs0XT1s5SgEYDnzueqzB9l_xYYl1HPBkxAc8Xu1Vd8HTK1M3CHAA7Yu2OLug3Zd9pCOUGEtApu2SClDmlEEKOjcoaYFQKIR2ljVsh67eVIWaUZmCb6vF_QoKemhtQ6YDMyfooQiHreFSn3NfjTzNtWsfWFPDlFdHswWWcva-6NKWCY2OxdlITQKmgqdehAP40p6VHFi6GFgumRXl9O5OVzS4FP6BmpBKP_UXZzgrK7TqUcZLKTwWY8vxltZNn2m--6C-IeQOCxWej_Lft3_RRp99-TCKNkDBaTio1hAaXv2h6N7ITHoxBSZbehF94M1mckmiIDE22A",
    "refresh_token":"5c5d0d00-eb31-38b6-ba97-4f46994051d9",
    "scope":"payments pis:c0d3da8c-df77-424f-ab01-0df47384713b",
    "token_type":"Bearer",
    "expires_in":3600
 }

Info

This is only available as a WSO2 Update from WSO2 Open Banking Identity Server Berlin Toolkit Level 1.0.0.5 and WSO2 Open Banking API Manager Berlin Toolkit Level 1.0.0.5 onwards. For more information on updating, see Getting WSO2 Updates.

Before you begin:

  1. Update the following files:
    • dynamic-endpoint-insequence-1.3.6.xml insequence file
    • OpenAPI File
  2. Redeploy the NextGenPsd2XS2AFramework API.

All the following endpoints need a user access token to retrieve payment information.

GET /payments/{payment-product}/{paymentId}

curl -X GET 'https://<APIM_HOST>:8243/xs2a/v1/payments/sepa-credit-transfers/4a8ac7c7-d5ee-42cb-8a29-44fc7778bd96' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID-Type: email' \
-H 'X-Request-ID: 6bb5c0b0-5f63-4872-b3dc-e4987f58f879' \
-H 'Date: Mon, 31 Oct 2022 11:59:20 GMT' \
-H 'PSU-ID: [email protected]' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=f/ozcQhnzQwGCGNbMe1bdpYMTqECO65uVBrwGCCYGajtilTs9O0wh3cA3Mrdtw2JUreEmSKDFpb0gjNObHCP6wdtOoCZpzU2EKhdhcPFVqkcJfL+9rMrJZU2l+U6sZs+FO7Bc2H/VQnvXXHRjD9UfPkrBLSvftDm1LxodQkei+7QuCfmvltILfynFQ/c/85ITnYqUQzlP6f/LDsWjOgQqXwWTVW7WMOHitLENwGaHNy6EjiIPFZIVYNJdHd51XHbqMNN332QQuE26IRzfUqy2Cus8a94hE8OZ4hx863M7V8YKIfWj3MSJSicSXwCeMClXalphV1NKUixRDKuqds85Q==' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o= \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
200 OK
Header: X-Request-ID: 6bb5c0b0-5f63-4872-b3dc-e4987f58f879
{
   "debtorAccount": {
       "iban": "DE12345678901234567890",
       "currency": "EUR"
   },
   "creditorName": "Merchant123",
   "transactionStatus": "ACCP",
   "creditorAccount": {
       "iban": "DE98765432109876543210"
   },
   "instructedAmount": {
       "amount": "123.50",
       "currency": "EUR"
   },
   "remittanceInformationUnstructured": "Ref Number Merchant"
}

Note

  • This response should be constructed by the core banking back end.
  • The transactionStatus property shows the status of the real payment at the time the request arrives at the bank backend.
  • The response to the request must comply with the response specified in the specification.

GET /bulk-payments/{payment-product}/{paymentId}

curl -X GET 'https://<APIM_HOST>:8243/xs2a/v1/bulk-payments/sepa-credit-transfers/319b67d3-f66d-42e3-b05d-2e26006ba775' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID-Type: email' \
-H 'X-Request-ID: f044aa8c-eee3-4d2b-8c22-49652bdf1531' \
-H 'Date: Mon, 31 Oct 2022 11:52:49 GMT' \
-H 'PSU-ID: [email protected]' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=lVHEoQ1PKXE3Ns7fW97I0gqluiu6mmXU+KKmccZmWVggCw1UEdjKLUSfV5a7GMj9qJyh8ddiXVRqnRcUUbSTpq72Czuvy+iuD/FBZuJmFrLIyxZ5G5nf50/CS9UauLPF2XBp7cAiz7ot+ON0oixNfOxv/hlFy7BXADo3rT4VlHE1Gy0eajHW5Sb8TMItkS1WqWHreSvPJw0uUr2/LfGA1gNCX+qNRi4KOboCWSlArlAneR1tvJ5Ng7jSe8lG+Z60neovBtDuFEdQSJK1wRAvTW3Akz//Cj5z7fp04NC+nK2ORhb8CzC8yW2ly4m/z48BAyWyEI9M4f2VesBJ0dubSA==' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o= \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
200 OK
Header: X-Request-ID: f044aa8c-eee3-4d2b-8c22-49652bdf1531
{
   "debtorAccount": {
       "iban": "DE40100100103307118608"
   },
   "requestedExecutionDate": "2025-08-01",
   "transactionStatus": "ACCP",
   "payments": [
       {
           "creditorName": "Merchant123",
           "creditorAccount": {
               "iban": "DE02100100109307118603"
           },
           "instructedAmount": {
               "amount": "123.50",
               "currency": "EUR"
           },
           "remittanceInformationUnstructured": "Ref Number Merchant 1"
       },
       {
           "creditorName": "Merchant456",
           "creditorAccount": {
               "iban": "FR7612345987650123456789014"
           },
           "instructedAmount": {
               "amount": "34.10",
               "currency": "EUR"
           },
           "remittanceInformationUnstructured": "Ref Number Merchant 2"
       }
   ],
   "batchBookingPreferred": true
}

Note

  • This response is constructed by the core banking back end.
  • The transactionStatus property shows the status of the real payment at the time the request arrives at the bank backend.
  • The response to the request must comply with the response specified in the specification.

GET /periodic-payments/{payment-product}/{paymentId}

curl -X GET 'https://<APIM_HOST>:8243/xs2a/v1/periodic-payments/sepa-credit-transfers/31169aed-3a46-4404-9035-99de2e776a60' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID-Type: email' \
-H 'X-Request-ID: eea1ced4-2ae3-499a-9e10-192d8e2ecb7a' \
-H 'Date: Mon, 31 Oct 2022 12:08:10 GMT' \
-H 'PSU-ID: [email protected]' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=znJTzGuMdw/GUGnFypWMQVZkxUDJ4VhO1rv2Ro7PBSFX1SpA/XkfcrydXIVXtUDEcUpiBSi97C3JzT93aN8htBgd2gEvEocVfxogXnylfcpQzu07JkMLdcr9MOvHJpZ6CxO0GRkhKYndDPXB1o/gDIRMLcDQNPyvSrMQT+lMuzKlJDCsZ3wkwu9HPSRfrpb5Mrc2T9vU8fa1kqOUCfOkrx8MIo42GnZB/BTYdzdNwRLJA0bbqPcFTFnhYhqfhUTDFfd+me6ull2zrijEp7x3oWO7wNHBqtGWJbUaQHaha6OSWGrtb5cSIfAU3hqFGiJKvnZN32hfPyBX3tcUq6m5xg==' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
200 OK
Header: X-Request-ID: eea1ced4-2ae3-499a-9e10-192d8e2ecb7a
{
   "executionRule": "following",
   "debtorAccount": {
       "iban": "DE12345678901234567890"
   },
   "creditorName": "Merchant123",
   "transactionStatus": "ACCP",
   "endDate": "2023-09-10",
   "dayOfExecution": "01",
   "creditorAccount": {
       "iban": "DE98765432109876543210"
   },
   "instructedAmount": {
       "amount": "123.50",
       "currency": "EUR"
   },
   "remittanceInformationUnstructured": "Ref Number Abonnement",
   "startDate": "2023-09-05",
   "frequency": "Monthly"
}

Note

  • This response is constructed by the core banking back end.
  • The transactionStatus property shows the status of the real payment at the time the request arrives at the bank backend.
  • The response to the request must comply with the response specified in the specification.

GET /{payment-service}/{payment-product}/{paymentId}/status

This request is applicable for instant payments, bulk payments, and periodic payments.

Given below is a sample request for a periodic payment:

curl -X GET 'https://<APIM_HOST>:8243/xs2a/v1/periodic-payments/sepa-credit-transfers/31169aed-3a46-4404-9035-99de2e776a60/status' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID-Type: email' \
-H 'X-Request-ID: d029c37a-d464-4304-b175-7c27fd7f5728' \
-H 'Date: Mon, 31 Oct 2022 12:12:08 GMT' \
-H 'PSU-ID: [email protected]' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=AEtotwhYvGkGQEZYD0a/rvBwW6JCqJ2hBFha8lQdcSI/zruoxF2cYkeRNSir3pwTYF9QmYwp2aPJZ8LoAozSHNQUs2Q9BmNHVET/g8HFV+7iBzfEqK6Mtyzu0u9u7qhBaLdu3vq1gSyMuQHPFoKgWgTGGVFiL0cTICp1Zka5niCxa6GGGwpwvER9DrApSk3nvwm/+vwHwmEEeP3LoQubvKDyDF6Vj438VLKpMGBl1kWv/WwkLhIUSW6OSVvxX+xWhgYBS0qxEW8FroSJIul1ncbhst8qAgFCmoV4fSon1o9qaEHQwnnIec/qpldbtEOmEZNGVCmnfu2OY1XyVw3Vxw==' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
200 OK
Header: X-Request-ID: d029c37a-d464-4304-b175-7c27fd7f5728
{
   "transactionStatus": "ACCP"
}

Note

  • This response is constructed by the core banking back end.
  • The transactionStatus property shows the status of the real payment at the time the request arrives at the bank backend.
  • The response to the request must comply with the response specified in the specification.

Payment cancellation requests

Info

This is only available as a WSO2 Update from WSO2 Open Banking Identity Server Berlin Toolkit Level 1.0.0.5 and WSO2 Open Banking API Manager Berlin Toolkit Level 1.0.0.5 onwards. For more information on updating, see Getting WSO2 Updates.

Before you begin:

  1. Update the following files with the files in the latest update level:
    • dynamic-endpoint-insequence-1.3.6.xml insequence file
    • OpenAPI File
  2. Redeploy the NextGenPsd2XS2AFramework API.

There are three types of payments as instant payments, bulk payments, and periodic payments.

  • Only bulk payments and periodic payments can be cancelled.
  • The bank should decide whether the payment cancellation needs authorization or not.

DELETE /{payment-service}/{payment-product}/{paymentId}

To cancel an already submitted payment

  • This will go to the core banking back end and respond accordingly.

    Note

    • Successful response code will be either 204 or 202. This is decided by the bank.
    • If you get 204 as the response code, it indicates that the bank does not need authorization to cancel this payment. Therefore, the payment status must be updated by the bank as CANC. The consent status will be updated as CANC.
    • If you get 202 as the response code, it indicates that the bank needs the authorization to cancel this payment. Therefore, the payment status must be updated by the bank as ACTC. The consent status will be updated to ACTC.

Sample DELETE Request for a bulk payment cancellation without authorization is given below:

curl -X DELETE 'https://<APIM_HOST>:8243/xs2a/v1/bulk-payments/sepa-credit-transfers/ecf7844a-6876-47c5-86e3-e41c005bd517' \
-H 'X-Request-ID: 94343777-125d-4d87-80d7-ab62c668514b' \
-H 'PSU-IP-Address: 127.0.0.1' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'PSU-ID: [email protected]' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=pCFdkT3tzqow04u9CVZGHWfhSQEXdMFdwXTVzsQNPLBQ2BSbnNhe9sg62MTcxUP5IIL+GVZ0UKy/UPjRT0KnWT7DGEIL9XVIg1J64nFZDV03kPrKF9eyx14eX7FJGn2TSbO/5G7FB33019j45RmHusRB6g0iunpOaf7Bciy3YtDz5De4OuHDyRkAP4RICBBRLXraLA6pUmHVutqI/UBbvZGJgJ7klgvt0MBHUYtMOdKsPSuFjNX5lcimBVwkI/RkMIVcbNF5Wt90YnbwxI6LzpNtBKbLonvFNBFhsRgsiTEFfUjMz8jL2P0g2S7g2XHWo2Is7Nl8VXIVV8oWuCqxOw==' \
-H 'Date: Mon, 31 Oct 2022 12:25:56 GMT' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
Header: 'X-Request-ID: 94343777-125d-4d87-80d7-ab62c668514b'
204 No Content

Note

If the bank decides not to require an authorization to cancel the payment, the response will be a 204 response code with no response body. The payment cancellation flow will end from there and the payment will be cancelled.

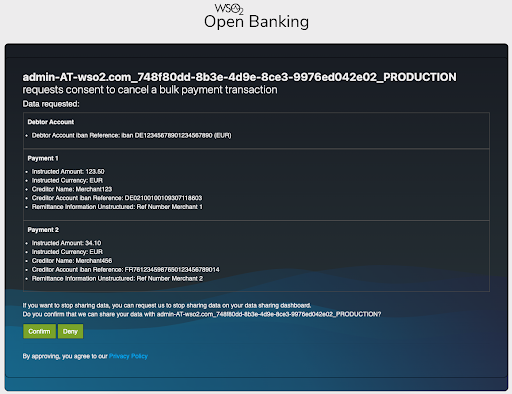

Sample DELETE Request for a bulk payment cancellation with authorization is given below:

curl -X DELETE 'https://<APIM_HOST>:8243/xs2a/v1/bulk-payments/sepa-credit-transfers/ecf7844a-6876-47c5-86e3-e41c005bd517' \
-H 'X-Request-ID: 94343777-125d-4d87-80d7-ab62c668514b' \
-H 'PSU-IP-Address: 127.0.0.1' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'PSU-ID: [email protected]' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=pCFdkT3tzqow04u9CVZGHWfhSQEXdMFdwXTVzsQNPLBQ2BSbnNhe9sg62MTcxUP5IIL+GVZ0UKy/UPjRT0KnWT7DGEIL9XVIg1J64nFZDV03kPrKF9eyx14eX7FJGn2TSbO/5G7FB33019j45RmHusRB6g0iunpOaf7Bciy3YtDz5De4OuHDyRkAP4RICBBRLXraLA6pUmHVutqI/UBbvZGJgJ7klgvt0MBHUYtMOdKsPSuFjNX5lcimBVwkI/RkMIVcbNF5Wt90YnbwxI6LzpNtBKbLonvFNBFhsRgsiTEFfUjMz8jL2P0g2S7g2XHWo2Is7Nl8VXIVV8oWuCqxOw==' \
-H 'Date: Mon, 31 Oct 2022 12:25:56 GMT' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>'
200 OK
Header: 'X-Request-ID: 94343777-125d-4d87-80d7-ab62c668514b'
{
   "transactionStatus": "ACTC",
   "chosenScaMethod": {
       "authenticationVersion": "1.0",
       "name": "SMS OTP on Mobile",
       "authenticationType": "SMS_OTP",
       "explanation": "SMS based one time password",
       "authenticationMethodId": "sms-otp"
   },
   "_links": {
       "self": {
           "href": "/v1/bulk-payments/sepa-credit-transfers/ecf7844a-6876-47c5-86e3-e41c005bd517"
       },
       "startAuthorisationWithPsuIdentification": {
           "href": "/v1/bulk-payments/sepa-credit-transfers/ecf7844a-6876-47c5-86e3-e41c005bd517/cancellation-authorisations"
       },
       "status": {
           "href": "/v1/bulk-payments/sepa-credit-transfers/ecf7844a-6876-47c5-86e3-e41c005bd517/status"
       }
   }
}

Note

  • If the bank requires an authorization to cancel the payment, the core banking backend will return a 202 response code and the body must comply with the specification.

  • The transactionStatus property must be ACTC.

If the bank returns 202 with the above payload for the DELETE request, the POST /{payment-service}/{payment-product}/{paymentId}/cancellation-authorisations request must be sent to create an authorization resource for the cancellation. This is indicated in the response of the DELETE request in the startAuthorisationWithPsuIdentification property. This request requires an application access token.

A sample POST cancellation authorisations request for bulk payments type is given below:

curl -X POST 'https://<APIM_HOST>:8243/xs2a/v1/bulk-payments/sepa-credit-transfers/697a4c4b-b939-4a18-8bfa-eae30ea90804/cancellation-authorisations' \
-H 'Content-Type: application/json' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID-Type: email' \
-H 'X-Request-ID: 2a7fb573-5a2d-49ba-bcdc-4b438930df1b' \
-H 'PSU-ID: [email protected]' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=OAAiz/XR3B7cj6g7Esmet8LX/gqJ3Hi7di4IurF8mn8oe/fxtBFC/sy6H+BEpPhySbDdE4TGoIhKESrhcuDHOYGIHWC1bwxCvV1V9P1XWcZmobBLPY9BCoM7osmblKcEvettmU+jPAUTCzNKmOxJIQouDkjf63+r/celk3Q/U0SE+RHByr47Dn3Bf54Fpeue2akzFfltyflTJaNCJIRjKIQSumBX27miQyhBhUkX0Et4M4fHPTmMcLitx5z52RufYSqQAuAtvKXaiVbM87g9MYDEvXhusxYNTx0HNYxvPrmL4KZCJvpeY4GbFRCE8qq8UMFJp95SCkhGOoJrpjHRUA==' \
-H 'Date: Mon, 31 Oct 2022 12:58:37 GMT' \
-H 'TPP-Signature-Certificate: <SIGNATURE_CERTIFICATE>' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
--data-raw '{}'
201 Created
Header: X-Request-ID:2a7fb573-5a2d-49ba-bcdc-4b438930df1b
ASPSP-SCA-Approach: REDIRECT
{
   "authorisationId": "df702657-b5be-4a6e-a8e4-5ce4db592b8e",
   "scaStatus": "received",
   "chosenScaMethod": {
       "authenticationVersion": "1.0",
       "name": "SMS OTP on Mobile",
       "authenticationType": "SMS_OTP",
       "explanation": "SMS based one time password",
       "authenticationMethodId": "sms-otp"
   },
   "_links": {
       "scaStatus": {
           "href": "/v1/bulk-payments/sepa-credit-transfers/697a4c4b-b939-4a18-8bfa-eae30ea90804/cancellation-authorisations/df702657-b5be-4a6e-a8e4-5ce4db592b8e"
       },
       "scaOAuth": {
           "href": "https://localhost:8243/.well-known/openid-configuration"
       }
   }
}

If the POST cancellation-authorisations request is successful, the TPP should send the authorization request as follows to inform the bank to cancel the payment. Then the bank displays a page similar to the consent page asking the PSU to approve or deny the cancellation authorization.

https://<IS_HOST>:9446/oauth2/authorize/?scope=pis:<payment_id>&response_type=code&redirect_uri=<redirect_uri>&state=55e9d72a-218c-44bb-824e-cf0d61c3fdb1&code_challenge_method=S256&client_id=<client_id>&code_challenge=re6uXq06M40gS82XcmUM6s9SQVTxtY5bLSYCNLuS1XE

Given below is a sample page for cancellation authorization for bulk payment type:

consent_page

  • If the PSU proceeds to the cancellation by selecting Confirm,
    • The payment cancellation will be submitted to the core banking back end
    • It will be cancelled by the bank.
  • If the PSU selects Deny,
    • The cancellation flow will end without submitting the payment cancellation
    • The payment will not be cancelled.
Top
