Confirmation of Funds flow

This page provides instructions to use the NextGenPSD2XS2AFramework API to provide the Payment Instrument Issuer Service (PIIS).

Deploying NextGenPSD2XS2A API v2 for PIIS

Before you begin:

Deploy the NextGenPSD2XS2AFramework API.

  1. Sign in to the API Publisher Portal at https://<APIM_HOST>:9443/publisher with creator/publisher privileges.
  2. Navigate to the API listing page, and click on the NextGenPSD2XS2AFramework API.
  3. Click Create New Version.
  4. Set the version number to v2 and click Create.
  5. You are redirected to the API Overview page of NextGenPSD2XS2AFramework API v2.
  6. Select API Configurations > API Definition from the left menu panel.
    api_definition
  7. Click Import Definition. import_definition

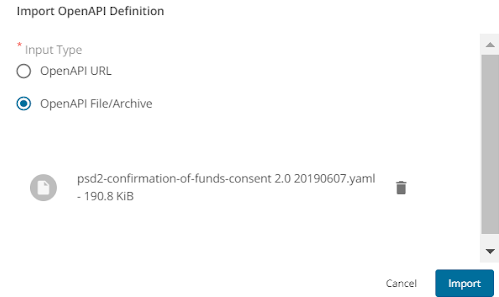

  8. Set the Input Type to OpenAPI File/Archive and click Browse File To Upload.
  9. Upload the <APIM_HOME>/<OB_APIM_TOOLKIT_HOME>/repository/resources/apis/berlin.group.org/ConfirmationOfFunds/psd2-confirmation-of-funds-consent 2.0 20190607.yaml file. api_definition
  10. Click Import. The changes are auto-saved.

  11. Go to Develop -> API Configurations -> Policies in the left menu pane to add a custom policy. select_policies

  12. On the Policy List card, click on Add New Policy.

  13. Fill in the Create New Policy.

  14. Upload the <APIM_HOME>/<OB_APIM_TOOLKIT_HOME>/repository/resources/apis/berlin.group.org/ConfirmationOfFunds/cof-consents-dynamic-endpoint-sequence-1.3.6.xml insequence file.

  15. Scroll down and click Save. Upon successful creation of the policy, you receive an alert as shown below:

    successful

  16. Expand the API endpoint you want from the list of API endpoints. For example: expand_api_endpoint

  17. Expand the HTTP method from the API endpoint you selected. For example: expand_http_method

  18. Drag and drop the previously created policy to the Request Flow of the API endpoint. request_flow

  19. Select Apply to all resources and click Save.

  20. Scroll down and click Save.

  21. Go to Deployments using the left menu pane and click Deploy New Revision.

  22. Provide a description for the new revision.
  23. Select localhost from the dropdown list.
  24. Click Deploy.
  25. Go to Overview using the left menu panel.
  26. Click Publish.

Subscribing to NextGenPSD2XS2A API v2

  1. Go to the Developer portal at <https://<APIM_HOST>:9443/devportal>.
  2. Go to the APIs tab. click_apis
  3. Select the NextGenPSD2XS2AFramework v2 API.

  4. Locate Subscriptions from the left menu pane.

    select_subscriptions

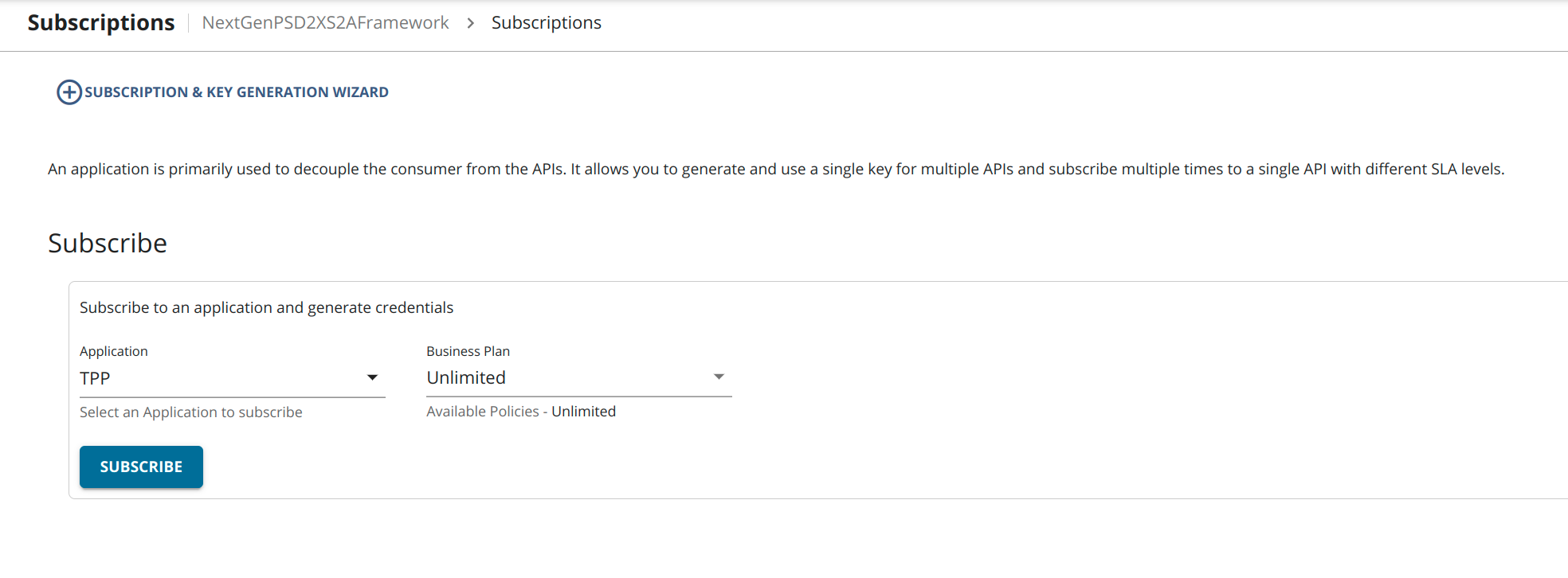

  5. Select your application from the drop-down list. subscribed

  6. Set the Throttling Policy and click SUBSCRIBE.
    • Once subscribed, the application can access all the supported services of the NextGenPSD2XS2AFramework API resources.

Generating application access token

Once you register the application, generate an application access token.

  1. Run the following cURL command in a command prompt to generate the access token. Update the placeholders with relevant values.

    Use the sample certificates for testing purposes. Click here to see how it is done...

    1. Download the cert.pem and upload it to the client trust stores as follows:

    2. The client trust stores for the Identity Server and API Manager are located in the following locations:

    3. <APIM_HOME>/repository/resources/security/client-truststore.jks

    4. <IS_HOME>/repository/resources/security/client-truststore.jks

    5. Use the following commands to add the certificate to the client trust store:

      keytool -import -alias cert -file <PATH_TO_CERT.PEM> -keystore client-truststore.jks -storepass wso2carbon

    6. Open the <APIM_HOME>/repository/conf/deployment.toml file and update the following configurations. Add the relevant signature algorithm supported by the certificate to the following configuration. Sample certificate supports SHA1withRSA signature algorithm:
      supported_signature_algorithms = ["SHA256withRSA", "SHA512withRSA", "SHA1withRSA"]
      Configure the issuer of the certificate as below if the certificate needs to be skipped form revocation validation.
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "EMAILADDRESS=<EMAIL_ADDRESS>, CN=<COMMON_NAME>, OU=<ORGANIZATIONAL_UNIT>, O=<ORGANIZATION>, L=<LOCALITY>, ST=<STATE/PROVINCE>, C=<COUNTRY>"
      Configure as below if the test certificates are used:
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "[email protected], CN=OB, OU=OB, O=WSO2, L=COL, ST=WP, C=LK"

    7. Restart the servers.

    8. Download the following certificates and keys, and use them for testing purposes. Use the transport private key and transport public certificate for Transport layer security testing purposes. Use the signing certificate and signing private keys for signing purposes.

curl -X POST \
https://<IS_HOST>:9446/oauth2/token \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d 'grant_type=client_credentials&scope=fundsconfirmations&client_id=<CLIENT_ID>'
  1. Upon successful token generation, you can obtain a token as follows:
    {
   "access_token":"eyJ4NXQiOiJOVGRtWmpNNFpEazNOalkwWXpjNU1tWm1PRGd3TVRFM01XWXdOREU1TVdSbFpEZzROemM0WkEiLCJraWQiOiJNell4TW1Ga09HWXdNV0kwWldObU5EY3hOR1l3WW1NNFpUQTNNV0kyTkRBelpHUXpOR00wWkdSbE5qSmtPREZrWkRSaU9URmtNV0ZoTXpVMlpHVmxOZ19SUzI1NiIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiJhZG1pbkB3c28yLmNvbUBjYXJib24uc3VwZXIiLCJhdXQiOiJBUFBMSUNBVElPTiIsImF1ZCI6IlBTREdCLU9CLVVua25vd24wMDE1ODAwMDAxSFFRclpBQVgiLCJuYmYiOjE2NDY4OTEyNzIsImF6cCI6IlBTREdCLU9CLVVua25vd24wMDE1ODAwMDAxSFFRclpBQVgiLCJzY29wZSI6ImFjY291bnRzIiwiaXNzIjoiaHR0cHM6XC9cL2xvY2FsaG9zdDo5NDQ2XC9vYXV0aDJcL3Rva2VuIiwiY25mIjp7Ing1dCNTMjU2IjoieWJlcWFJbTUwMElNUHkxOVZrUGZIUlRKTnQ5cXZfUXQ1am1IZHQtYkptYyJ9LCJleHAiOjE2NDY4OTQ4NzIsImlhdCI6MTY0Njg5MTI3MiwianRpIjoiNGY4NDZkMDEtNGYwMS00OGEwLWI5YjItYjk3Yzc0ZmY1MWE4In0.cGQ8h0q9WqPM0VcqNLFz0fnWshPxuqNqJCwqierPjCS84pTK9vYVZqzy66-g-tNylFv9RzMYepOoFCFOcGfUAdtj_PR9GRLnRxKHgiCJMhiVEnZQ1kI0sSICqAB9ezGmtJgZwz2pqfnikCOFz-zTO0UumNDxJ48Qx6U4cr98aG34XLg4EKbvsCbIJuPPM1-sqRgPiQPKQ2EyNzHfRWeNPES5J8UhrIcVZ8pfrBqZ68eMFZxYQ7Bzg9Ch3PDcZyNYczGYFmNJD_pyoccZo5bSC7DDp9r4giQR2P_jL23N4AcKz0eww1FsTQOktBtRGrZ2-RT6zqh5kJ0E20BPYOv8Wg",
   "scope":"fundsconfirmations",
   "token_type":"Bearer",
   "expires_in":3600
}

This is where the PIISP generates a request to get the consent of the PSU to confirm the availability of funds in the PSU’s account.

  1. Create a consent using the following request:

    curl -X POST \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds \
-H 'X-Request-ID: 790916ee-87ac-4f20-a35b-68a435d81873' \
-H 'Date: Mon, 9 May 2022 06:25:58 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Digest: SHA-256=bERAhF2b5mPJ8UdQ4BNtqMyXNmuh9J8xB+3Jxql3rqw=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=CtsCyBEKi2CQHHfGao6GjwJzN/GixJS9UPyjihLgCrner49pAskOyTadQQijM8fMQRj7g1XX7jROrvS5sjjeOjtlFFO0V3gaXfWTT6MskXw6EjGsoeQWuRJN04oYyjJV05V/glO0yNsD2aXVm4Ozly7VeWAFSo83WEqzGq44eBolcM2gP4J47wCY2kOERM4Pd6eCazaS8ZRnCbToxcTwCf4FouNcB783QlY/gckD0ZL4AVov2jpAcyCe3iB4jSCK5PcbP3yWmssdJ7Kj/9INavhDa8v9h3blOhci2TXQA9T8/hgTe/yaSgOFg1Jkc+hylDeXL82GraGuPHxN5KH+Aw==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'Content-Type: application/json; charset=UTF-8' \
-H 'Accept: */*' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d '{
    "account": {
        "iban": "DE98765432109876543210"
    },
    "cardNumber": "1234567891234",
    "cardExpiryDate": "2025-12-31",
    "cardInformation": "My Merchant Loyalty Card",
    "registrationInformation": "Your contract Number 1234 with MyMerchant is completed with the registration with your bank."
}'

  2. The response contains a Consent Id. A sample response is as follows:

    {
   "consentId":"427041f6-97d9-4f98-8f3c-33083f4f4631",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v2/consents/confirmation-of-funds/427041f6-97d9-4f98-8f3c-33083f4f4631/authorisations/88330e7c-51ae-40ae-aa0e-1ff79d2934b1"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      },
      "self":{
         "href":"/v2/consents/confirmation-of-funds/427041f6-97d9-4f98-8f3c-33083f4f4631"
      },
      "status":{
         "href":"/v2/consents/confirmation-of-funds/427041f6-97d9-4f98-8f3c-33083f4f4631/status"
      }
   },
   "consentStatus":"received"
}

Account references

  • An account reference is used to address specific accounts. It is a combination of an account identifier and optionally a currency.

  • NextGenPSD2 Reference Toolkit supports IBAN, BBAN and Masked PAN account identifier types. These can be configured using the following configuration in the <IS_HOME>/repository/conf/deployment.toml file.

    [open_banking_berlin.consent]
supported_acc_ref_types = ["iban", "bban", "maskedPan"]

Multi-currency accounts

  • If the PIISP requests for a multi-currency account without the currency attribute in the account reference, it implies that the PIISP is requesting access only to the default currency sub-account.
  • If the PIISP requests for an account with the currency attribute in the account reference, it implies that the PIISP is requesting access only to that particular sub-account.

GET /consents/confirmation-of-funds/{consentId}

To retrieve the details of the created consent.

curl -X GET \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds/30db0093-9258-4d09-aad4-bbf007ad18da \
-H 'X-Request-ID: b4ce6c21-a81d-46e3-a8da-e2a95e74280f' \
-H 'Date: Mon, 9 May 2022 07:20:39 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=Yd5Z8+bUTDH5YAzb9Vqwg6SM+D+opyQlgkazEjM8HrUPR20V/nBaD8H4ytgdhnWPzJo7NzjBgRWYlOLRjlO/OJ4wRm7ggyffUoO7S98enLatz66fpEdT9LhnypNG7KW8DpMNYOQxBCs53kO0kUi6Ec8XRdnNWJD23Rqb0U8O1kovyLRKnY5YTxtTB6tMurkxPJ/P2Lw8EuK6ZOslRJmCaLR0l4/cIwBrA8pD9vqy8mYEoIG9uMXUqBiAFQMmsXqUgfW1UMmxM67L3nedssxfpF6aA6Iru7Qdvq0hMGOp53r49kYdNNsDpL7SxvewSCWzv5g0sHgkgsL5yhH9VY4s5Q==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH>
{
   "consentStatus":"received",
   "registrationInformation":"Your contract Number 1234 with MyMerchant is completed with the registration with your bank.",
   "cardInformation":"My Merchant Loyalty Card",
   "account":{
      "iban":"DE98765432109876543210"
   },
   "cardNumber":"1234567891234",
   "cardExpiryDate":"2025-12-31"
}

GET /consents/confirmation-of-funds/{consentId}/status

To retrieve the status of the created consent.

curl -X GET \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds/427041f6-97d9-4f98-8f3c-33083f4f4631/status \
-H 'X-Request-ID: 08b56284-4336-4564-87a1-4f95ca10481e' \
-H 'Date: Mon, 9 May 2022 06:26:01 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=cT7durOyUcNvejaeJw6v3oDfPwpZiixdyY7m/bJbcSMFfva7L1lU/OTc+6WouzvVenNkS41uKL90mpkDz31yrf7wWYrR3jLy+lg0m2DTyw7KLacRpdhNxxqFsxRSOBjTCdm+Ub7lZ+HypQFbm5im3Zg4wdCHoGgsRO5f+DjGDvgkjcWm6dKj7lvvJMdqemlDEPdaUsv0glsZGBof0D6vf7rexFILf9pSI6B8JJIEVm7XTTnq0zOzWs4XwbsBWum7Bxvjx9awhU5PPVrlxd/2MnqmHZwn5Ey8l1dt+CZMZlGGON6X/Mvdkq6PwofWz0yjHGKanWwW4FmulozPiyLGRw==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH>
{
   "consentStatus":"received"
}

GET /consents/confirmation-of-funds/{consentId}/authorisations/{authorisationId}

To retrieve the SCA status of the authorisation.

curl -X GET \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds/427041f6-97d9-4f98-8f3c-33083f4f4631/authorisations/0724a9cf-4d03-4eb3-90e4-c47b2f742007 \
-H 'X-Request-ID: 57daa273-6e43-4bfb-b29e-20b714c98a6e' \
-H 'Date: Tue, 29 Mar 2022 14:07:03 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=PJP/fxgHkvJuHBiiNYIRw6VXp9AofVeb5QeqEnQ/Tg/WCElMyPhXxwOqxjI3q3FJzUqWbGWLQwDo2eBnHd427gHKt5xzdFw3N4cT1fdXuPYexZLzgfiZ9QuFT6wjlAN2A/wAvoyWzTel7xK0pSQxgX5vM3VKT9iD7DaCmz6d3IxR4hJxZ3gonE7taGpuSxVGVAhchp63uiS73B5dUhT1WakdvIIgCV7Sl8C/B7BlvsFoLPOCgLxo3LA3uNmCVJnJCCFs1TrcuIGEkriRfIZtqHRLF7JWxo2q3TIJ7LPwM+2L4qB98DczhUNe3Vp3fV8S/xUjPTz+vTa9ZYqN4HWoHQ==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH>
{
   "scaStatus":"received"
}

DELETE /consents/confirmation-of-funds/{consentId}

To delete a consent.

curl -X DELETE \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds/4baf1e1f-83ca-4ecc-b8b6-3983c8f678b7 \
-H 'X-Request-ID: 79bafd1a-866c-4c91-93fc-48ba232b7965' \
-H 'Date: Mon, 9 May 2022 07:24:54 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=jQLGP/EL1GfsYOtWhBrjQRFu/hYv5vt4PCcH+81F1j19hzpHYAh9ojYcESFs2n63J7mfwexhFBzY0KjQmurXGn8pZsRHT6q6CV4qOrFp1EBrkbtz064WFYlTE9vM/kwpnXSS4EMoIkOd7BQjIjH/Mv9OuiiBU3IbSpYqI+f/N0kMT2gPE3aj4P4udSe8dyE791g9ZAvqckHf0WmujpXeYs87M0FQWS6nuZVK+2dXmClG7AGKAEYUTIFstjV/2gzVAC0Mi8IqKGTS+GnPxJCAYrLdmwneij4wVxWohuFCzrli8sAN0Cj5mNgfYL0X3x/yQVEnBe/wnlk5VSsRBQ9mIw==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH>
204 No Content

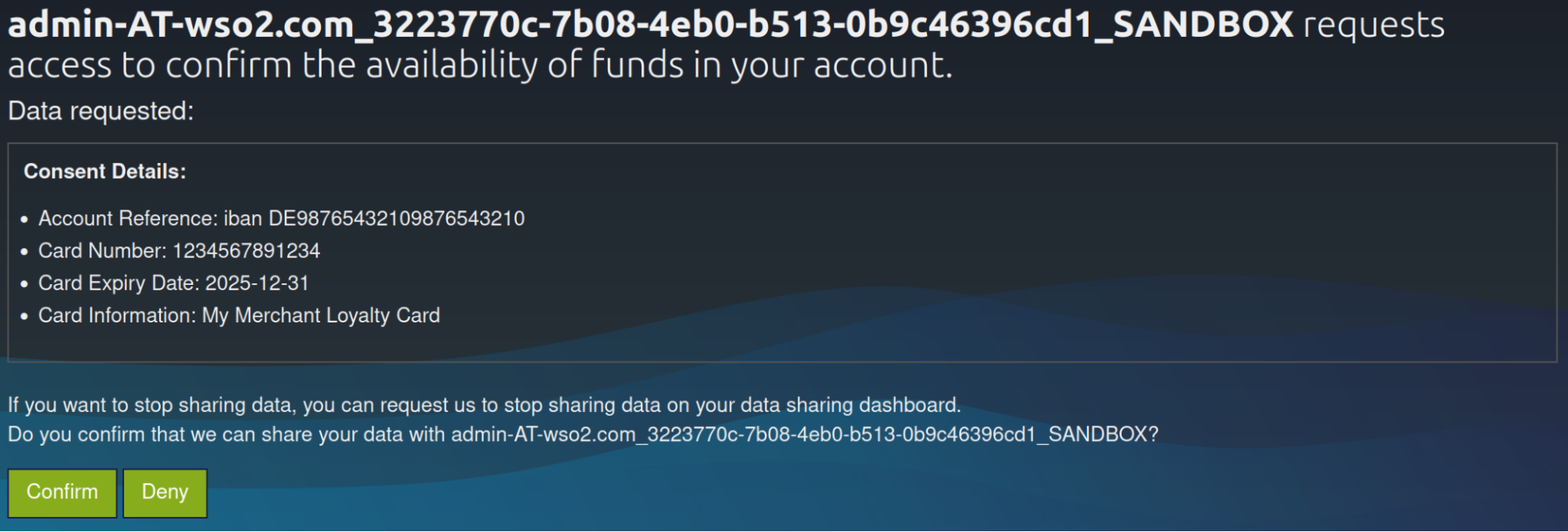

The PIISP application redirects the PSU to authenticate and approve/deny the provided consent. This can be achieved in 2 ways:

  1. Implicit flow
  2. Explicit flow

The TPP decides the approach using TPP-Explicit-Authorisation-Preferred, which is an optional boolean header. This header is sent during the consent initiation request. If TPP-Explicit-Authorisation-Preferred is set to false or the header is not present, the Implicit approach is followed.

Implicit authorisation flow

The Implicit authorisation flow is as follows:

  1. The ASPSP creates an authorisation sub-resource implicitly after the funds-confirmation consent is received.
  2. The ASPSP replies with the well-known configuration of the Identity Server in the _links section of the response.
  3. The TPP generates the authorisation URL using the well-known URL.
  4. The PSU goes through the authorisation flow with that authorisation URL.

Explicit authorisation flow

The Explicit authorisation flow is as follows:

  1. Once the consent is granted, the ASPSP replies with one of the startAuthorisation links in the _links section of the response.

    curl -X POST \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds \
-H 'X-Request-ID: ee0b39da-c32a-4865-9762-029fb3a4a0f0' \
-H 'Date: Mon, 9 May 2022 07:43:53 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'TPP-Explicit-Authorisation-Preferred: true' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=bERAhF2b5mPJ8UdQ4BNtqMyXNmuh9J8xB+3Jxql3rqw=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=y/L1azJWyggJUCgj3bD/ldV+DqdFkkVO+Rhl2DjzrJNwDcOyLhJZ8+kzGhONSL8hOhGcYH94Myz2EtCfSWB238rOW6fC9kY+1hUi6k497cJDvg7Ql0cDj+ocC0IVqEdnLfOGnlB2uooqpZwo/kC9nGrlnD0GacSuGsoz5OvQsQnr8VD0/BdYL23oyNkDgFRGl4h7pZJEipXwVR+gZkApoUw9tjOidR2bdiT3m5KS7wq6K3seRvuuLIUPiSHLB78LXg7jzHQIWlvnnw84y8SDpBs84JemtM1lfrm/m9xyMlYmkG6+aqQAEn5jgPU8rIPBoc/Xct5jHRt9STp6QVlN1g==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d '{
    "account": {
        "iban": "DE98765432109876543210"
    },
    "cardNumber": "1234567891234",
    "cardExpiryDate": "2025-12-31",
    "cardInformation": "My Merchant Loyalty Card",
    "registrationInformation": "Your contract Number 1234 with MyMerchant is completed with the registration with your bank."
}'
    {
    "consentId": "2e470730-30f2-4428-9736-a632ffdcc5da",
    "chosenScaMethod": {
        "authenticationVersion": "1.0",
        "name": "SMS OTP on Mobile",
        "authenticationType": "SMS_OTP",
        "explanation": "SMS based one time password",
        "authenticationMethodId": "sms-otp"
    },
    "_links": {
        "self": {
            "href": "/v2/consents/confirmation-of-funds/2e470730-30f2-4428-9736-a632ffdcc5da"
        },
        "startAuthorisationWithPsuIdentification": {
            "href": "/v2/consents/confirmation-of-funds/2e470730-30f2-4428-9736-a632ffdcc5da/authorisations"
        },
        "status": {
            "href": "/v2/consents/confirmation-of-funds/2e470730-30f2-4428-9736-a632ffdcc5da/status"
        }
    },
    "consentStatus": "received"
}

  2. The TPP uses the startAuthorisation link to create an authorisation sub-resource explicitly.

    curl -X POST \
https://<APIM_HOST>:8243/xs2a/v2/consents/confirmation-of-funds/2e470730-30f2-4428-9736-a632ffdcc5da/authorisations \
-H 'X-Request-ID: 10646d47-264c-4ae4-b180-16a8ec775d22' \
-H 'Date: Tue, 29 Mar 2022 00:16:38 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <APPLICATION_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=RBNvo1WzZ4oRRq0W9+hknpT7T8If536DEMBg9hyq/4o=' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=pvY8Y7q6OCupbm9ESMcd8QZ2HqpMVhx6MGeUDouLmL1TkAUnRkTYOaWGnaVMZZC1ggPTwqu5/Xn9mp3JGPoEv/833tfvqCuVkJfjBebnLQvXk2TXBXOgh0Bmu+8iZVMEJD2r666+0gayhzBYUSOWLm2enOACcEbMetjYTG1vlvYVYjLeNC+DsDQp6b+0B0oQ8wHa2u2g1XDIYgl7Xl34ET6CRKCNyH+SqZXovVnLmctBCKzMJU1Sh1UxaGVkRhyAUG/h57swWOfr83DQkl2zMYDONZA5Tn3te3ewkz/OdJjyb9jUe+/lhPvOolOSlwFbUrTo88WOI+Eja+HBCzG27Q==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d '{

}'
    {
   "authorisationId":"33041682-2927-4012-9a33-635b3038b06b",
   "scaStatus":"received",
   "chosenScaMethod":{
      "authenticationVersion":"1.0",
      "name":"SMS OTP on Mobile",
      "authenticationType":"SMS_OTP",
      "explanation":"SMS based one time password",
      "authenticationMethodId":"sms-otp"
   },
   "_links":{
      "scaStatus":{
         "href":"/v2/consents/confirmation-of-funds/2e470730-30f2-4428-9736-a632ffdcc5da/authorisations/33041682-2927-4012-9a33-635b3038b06b"
      },
      "scaOAuth":{
         "href":"https://localhost:8243/.well-known/openid-configuration"
      }
   }
}

  3. The ASPSP replies with the well-known configuration of the Identity Server in the _links section of the response.

  4. The TPP generates the authorisation URL using the well-known URL.
  5. PSU goes through the authorisation flow with that authorisation URL.

Multiple SCA of more than one PSU (Multi-authorization)

  • For some accounts, more than one PSU has to give their consent before accessing this account. In this case, Strong Customer Authentication (SCA) has to be executed by more than one PSU.
  • In a multi-authorization scenario, steps 2 to 5 must be repeated n number of times for n number of PSUs. The consent becomes valid only after all the PSUs approve it.

Authorisation URL

Regardless of the authorisation flow, once the well-known configuration of the Identity Server is obtained, the TPP must generate an authorisation URL for the PSU to authorise the consent. This authorisation URL must be authorised by n number of PSUs in a multi-level authorisation context.

  1. The ASPSP sends the request to the PSU stating the accounts and information that the TPP wishes to access. The request is a URL in the format given below. Update the placeholders with relevant values and run this in a browser to prompt the invocation of the authorize API:

    https://<IS_HOST>:9446/oauth2/authorize/?scope=<YOUR_SCOPES>&response_type=code&redirect_uri=<REDIRECT_URI>&state=<DYNAMICALLY_SET_VALUE>&code_challenge_method=<YOUR_CODE_CHALLENGE_METHOD>&client_id=<ORGANIZATION_ID>&code_challenge=<YOUR_CODE_CHALLENGE>
    Click here to see the descriptions for the parameters in Authorisation URL
    Parameter Description
    scope This is the reference to the payment consent resource for access. It is in the form of piis:<consentId>.
    response_type The recommended response type is code.
    redirect_uri The TPP's URI that the OAuth2 server redirects the PSU's user agent after the authorisation.
    state TPPs set a dynamic value to prevent XSRF attacks.
    code_challenge_method Code verifier transformation method. NextGenPSD2XS2AFramework specification recommends S256.
    client_id As provided in the eIDAS certificate, the organization_Identifier must contain the following information in it:
    • PSD as 3 character legal person identity type reference
    • 2 character ISO 3166 country code representing the NCA country
    • hyphen-minus -
    • 2-8 character NCA identifier (A-Z uppercase only, no separator - hyphen-minus "-"
    • PSP identifier (authorisation number as specified by NCA)
    code_challenge This is used to avoid code injection attacks using the PKCE challenge in the cryptographic RFC 7636. For more information, see RFC 7636.

    Tip

    The NextGenPSD2 Reference Toolkit requires PKCE support for authorization. The state and code challenge method values indicate the PKCE usage. For more information, see Consent Authorization with PKCE.

  2. Upon successful authentication, the PIISP is redirected to the consent authorise page. Use the login credentials of a user that has a subscriber role.

  3. The page displays the data requested by the TPP for that particular consent along with its accounts and permissions.

    consent_page

  4. Upon providing consent, an authorization code is generated on the web page of the redirect_uri. See the sample given below:

    https://www.wso2.com/?code=5b771c49-dfe3-33f6-abe1-18f0426b8734&state=768ff3be-964c-41d9-9022-848ba379e1bf

    The authorization code from the above URL is in the code parameter (code=5b771c49-dfe3-33f6-abe1-18f0426b8734).

Generating user access token

In this section, you will be generating an access token using the authorization code generated in the section above.

  1. Run the following cURL command in a command prompt to generate the access token. Update the placeholders with relevant values.

    Use the sample certificates for testing purposes. Click here to see how it is done...

    1. Download the cert.pem and upload it to the client trust stores as follows:

    2. The client trust stores for the Identity Server and API Manager are located in the following locations:

    3. <APIM_HOME>/repository/resources/security/client-truststore.jks

    4. <IS_HOME>/repository/resources/security/client-truststore.jks

    5. Use the following commands to add the certificate to the client trust store:

      keytool -import -alias cert -file <PATH_TO_CERT.PEM> -keystore client-truststore.jks -storepass wso2carbon

    6. Open the <APIM_HOME>/repository/conf/deployment.toml file and update the following configurations. Add the relevant signature algorithm supported by the certificate to the following configuration. Sample certificate supports SHA1withRSA signature algorithm:
      supported_signature_algorithms = ["SHA256withRSA", "SHA512withRSA", "SHA1withRSA"]
      Configure the issuer of the certificate as below if the certificate needs to be skipped form revocation validation.
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "EMAILADDRESS=<EMAIL_ADDRESS>, CN=<COMMON_NAME>, OU=<ORGANIZATIONAL_UNIT>, O=<ORGANIZATION>, L=<LOCALITY>, ST=<STATE/PROVINCE>, C=<COUNTRY>"
      Configure as below if the test certificates are used:
      [[open_banking.gateway.certificate_management.certificate.revocation.excluded]]
issuer_dn = "[email protected], CN=OB, OU=OB, O=WSO2, L=COL, ST=WP, C=LK"

    7. Restart the servers.

    8. Download the following certificates and keys, and use them for testing purposes. Use the transport private key and transport public certificate for Transport layer security testing purposes. Use the signing certificate and signing private keys for signing purposes.

    curl -X POST \
https://<IS_HOST>:9446/oauth2/token \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d 'code=<GENERATED_CODE>&grant_type=authorization_code&redirect_uri=<REDIRECT_URI>&code_verifier=<CODE_VERIFIER>&client_id=<CLIENT_ID>'

  2. Upon successful token generation, you can obtain a token as follows:

    {
   "access_token":"eyJ4NXQiOiJOVGRtWmpNNFpEazNOalkwWXpjNU1tWm1PRGd3TVRFM01XWXdOREU1TVdSbFpEZzROemM0WkEiLCJraWQiOiJNell4TW1Ga09HWXdNV0kwWldObU5EY3hOR1l3WW1NNFpUQTNNV0kyTkRBelpHUXpOR00wWkdSbE5qSmtPREZrWkRSaU9URmtNV0ZoTXpVMlpHVmxOZ19SUzI1NiIsImFsZyI6IlJTMjU2In0.eyJzdWIiOiJhZG1pbkB3c28yLmNvbUBjYXJib24uc3VwZXIiLCJhdXQiOiJBUFBMSUNBVElPTl9VU0VSIiwiYXVkIjoiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWCIsIm5iZiI6MTY0ODU0MTA2MiwiYXpwIjoiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWCIsInNjb3BlIjoiYWNjb3VudHMgYWlzOmMwZDNkYThjLWRmNzctNDI0Zi1hYjAxLTBkZjQ3Mzg0NzEzYiIsImlzcyI6Imh0dHBzOlwvXC9sb2NhbGhvc3Q6OTQ0Nlwvb2F1dGgyXC90b2tlbiIsImNuZiI6eyJ4NXQjUzI1NiI6InliZXFhSW01MDBJTVB5MTlWa1BmSFJUSk50OXF2X1F0NWptSGR0LWJKbWMifSwiZXhwIjoxNjQ4NTQ0NjYyLCJpYXQiOjE2NDg1NDEwNjIsImp0aSI6IjNkN2I4YTE4LTcxMWMtNDljYi05YTE2LTViZjgzMjA5NGZjNCIsImNvbnNlbnRfaWQiOiJjMGQzZGE4Yy1kZjc3LTQyNGYtYWIwMS0wZGY0NzM4NDcxM2IifQ.ipVzAeTfHgDB3lgd7s06MD1GYAJec6anqwo-jiz99ucs9LxFHYVHK1XKpXB2YPx-R5FR_ssWGycqvQ4jima_QHjEI82us9l1c5o81L6y1EC_3jKuODEcigyxcmgha5MnnmAONgA9HT6o5bOQUBVSzjMogsvsF6MafyRUfItMXFJFwp_E-_tcSWprYq_1aMUa3sQuzBP1SpZxLUkbxp0mrtM3wgt9mBQVfhqGdqqwMH4l0iapA1O4cILDZTYlg29sEduznFwgqTbfygU5S_5Jd09NLyhFfwA96plEUbrGlQozcSiER2D6L3I8Rx2VkFYeKM9VlvOi3uIkq5THRC_gcg",
   "refresh_token":"5c5d0d00-eb31-38b6-ba97-4f46994051d9",
   "scope":"fundsconfirmations piis:c0d3da8c-df77-424f-ab01-0df47384713b",
   "token_type":"Bearer",
   "expires_in":3600
}

Invoking Payment Instrument Issuer Service

Once the PSU approves the funds-confirmation consent, the PIISP is eligible to access the account details of the PSU based on the provided permissions.

  1. The sample request is as follows:

    curl -X POST \
https://<APIM_HOST>:8243/xs2a/v1/funds-confirmations \
-H 'X-Request-ID: 9b04ed2f-06fe-4f5e-801a-9660272beeaa' \
-H 'Date: Mon, 9 May 2022 08:10:56 IST' \
-H 'PSU-IP-Address: 127.0.1.1' \
-H 'Authorization: Bearer <USER_ACCESS_TOKEN>' \
-H 'PSU-ID: [email protected]' \
-H 'PSU-ID-Type: email' \
-H 'Consent-ID: f10b6846-39f7-4f38-b4a0-a9a114b55f94' \
-H 'Accept: */*' \
-H 'Digest: SHA-256=AJi8UrgHXbciE7oXw4qa5pr0F3LYRXMQbjLOCUnX8J1a' \
-H 'Signature: keyId="SN=de730ec5733ead1b,CA=1.2.840.113549.1.9.1=#16116d616c7368616e694077736f322e636f6d,CN=OpenBanking Pre-Production Issuing CA,OU=OpenBanking,O=WSO2 (UK) LIMITED,L=COL,ST=WP,C=LK",algorithm="rsa-sha256", headers="digest x-request-id date psu-id",signature=MqVxkIW5U0zewIptkYK783qm0aYeYdIIq8Ko+Fecu1oLL1y/kFuI71iMpeZqn8bKNH2yWsDpFVxLPbAjRIhA+yw2INcTvZy7rGsvRr1wOuBn0/8RLeL9GIsZ17SIrLzVxrKyivH8ccIZ+o2hXT36WWak1Af5a+lBeyN2IVN/REEsplLtRDLDIagVqNixxnMisZCa7M1MGS8DDs6eIb1zICvYPLQj01Cdpe92XvPAaGp8vnOGgitaClJJ2ll7FsM2O+m7f55dt+c0nDnDTf+HO0tH2WXsgTEaqtlLLgWjifkl5cdKxSXq9jiHmGYfQlb50Y2erAhRgFxRT3h64u4SuQ==' \
-H 'TPP-Signature-Certificate: MIIFdzCCA1+gAwIBAgIJAN5zDsVzPq0bMA0GCSqGSIb3DQEBBQUAMIGsMQswCQYDVQQGEwJMSzELMAkGA1UECAwCV1AxDDAKBgNVBAcMA0NPTDEaMBgGA1UECgwRV1NPMiAoVUspIExJTUlURUQxFDASBgNVBAsMC09wZW5CYW5raW5nMS4wLAYDVQQDDCVPcGVuQmFua2luZyBQcmUtUHJvZHVjdGlvbiBJc3N1aW5nIENBMSAwHgYJKoZIhvcNAQkBFhFtYWxzaGFuaUB3c28yLmNvbTAeFw0yMjAxMTgwNzI4MzdaFw0yNDAxMTgwNzI4MzdaMHMxCzAJBgNVBAYTAkdCMRowGAYDVQQKDBFXU08yIChVSykgTElNSVRFRDErMCkGA1UEYQwiUFNER0ItT0ItVW5rbm93bjAwMTU4MDAwMDFIUVFyWkFBWDEbMBkGA1UEAwwSMDAxNTgwMDAwMUhRUXJaQUFYMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA1rhjeBrT0+nb/VaHYrkgNodKUlShQvXHL8/sb1q+sVt459LqX8SDYemp01OWWKv45TBv9WtUVl8T08Zc2n5Q6ha7BKVjXaSsDhkXj7TrOAwBxRWnNjNivvyb4n4Gxek+AcgozEUFj1MHeIkgywEzP3DUNkbZiQjw7LFxLOy9Bh00f089DrCRHxEnUPka9BdRS9M0GWIuMVxn+FxmbZIl7wVxc8t2xFd4uWGtvBX1EbWLYJr1/j5fgjHCSmkj23Ar+6oqv2AKpp9HJ2aeYJozHRy+4asSjTuYeobULGIaSxgPGOJg4fprs+2UKpV2z2B6RMDf78WQJoGn+lm4wLtKWwIDAQABo4HTMIHQMA4GA1UdDwEB/wQEAwIGwDAdBgNVHQ4EFgQUIprePFwGvrdfcP6t14Y5TzPPgJowgZ4GCCsGAQUFBwEDBIGRMIGOMBMGBgQAjkYBBjAJBgcEAI5GAQYCMHcGBgQAgZgnAjBtMEYwRAYHBACBmCcBAQwGUFNQX0FTBgcEAIGYJwECDAZQU1BfUEkGBwQAgZgnAQMMBlBTUF9BSQYHBACBmCcBBAwGUFNQX0lDDBtGaW5hbmNpYWwgQ29uZHVjdCBBdXRob3JpdHkMBkdCLUZDQTANBgkqhkiG9w0BAQUFAAOCAgEAsuTEC6j8u7lGEpSeVekcUXby9DPRaI6He7MW2K9f6nz12nleyUnvQVQqoFUF+kywRgGpIP/9HsI12NYwLVfgm9LJWR+ObBMWDH1OUqgxgy+Pj4+udiR8FJQsEdY6eF4lgfQq6SU+naMFCcJhuIFEVjItiC71nVg2PPdaXRwxOlXhuIpfW3DdIaELNffoVKYxnx/wpRGRAbTFI87pDdqZ/2sbkbnt4Lq+7VIQmdqqrMCIvPqh8n6/I5xotq8kPbBcf7/1wjUDClqX5chBh89sxZhIyRtOq3HiVzQ2c6sYgA640LsxHB4yPWFDv5tPnzohmDmfCYcvbSZhsGm+hlyjaf8/gN8cG+ui7PFKuyI0NUnR3rD88gIzl2lT1Wtw9f2eFkS8NSnB3ENhRYPLcvZDePktOjkj5PEqo4OTZgGnoMzXNvzWaABrcpzw7a1WF7swvvZavUg9bvFbbeVloDZj4w9ODICoe/Sy+2nZBRTVzIHGJ4kNzscXXSMsSD9sXZMT/JmmD+cs/X/9SJzAsunXqpHbTB9PiGWdR7rhk6e0ddwwTa7wLs/h2MOP8LyTVaHQtNXe8x54YwDCP98dZ1G76iLKIZoU84aYcGp7E8tlQl05UhunlTNe+WxWvBt9tWeotaOomSqGRWDk+4j5z91NoFuFQ81aDAJxB8RYI2I1sk8=' \
-H 'Content-Type: application/json; charset=UTF-8' \
--cert <TRANSPORT_PUBLIC_KEY_FILE_PATH> --key <TRANSPORT_PRIVATE_KEY_FILE_PATH> \
-d '{
    "cardNumber": "12345678901234",
    "account": {
        "iban": "DE98765432109876543210"
    },
    "instructedAmount": {
        "currency": "EUR",
        "amount": "123"
    }
}'

  2. The above request checks if the account consented by the PSU holds the requested funds. Given below is a sample response:

    {
   "fundsAvailable":true
}
Top
